Electronic Panels
Showing all 5 results

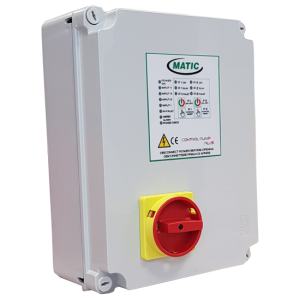

CONTROL PUMP PLUS (Control Panel SINGLE&THREE PHASE for 1& 2 PUMPS ALL IN ONE)
Product: Multi Function Control Panel
Power Supply: 240V e 400V ALL IN ONE
Max Motor Load : 2 x 1,5 Kw Single Phase 230V c.a. – 2 x 5,5 Kw Three Phase 400 V c.a. ALL IN ONE
IP: 55
Read more

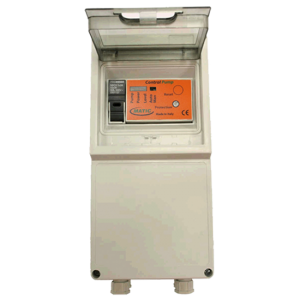

Control Pump M3A-14
Product: Panel For Motor Direct Control
Power Supply: 240V c.a.
Motor Load Max: 1,5 Kw Single Phase 250V c.a.
Motor Overload Protection: Not Adjustable-Replaceable type
IP:55
Read more

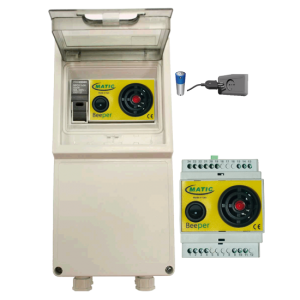

BEEPER
Product: Acoustic/Visual Signaller
BEEPER S 2 OUT Power Supply :24-240-380 V c.a. Multi Tensione
BEEPER S 9V Power Supply: 9V c.c. Battery
Output relay 1: 20(8) 250 V a.c. 2Hp (only for 2 Out Type)
Output relay 2: 10 (4) 250V a.c. 1Hp (only for 2 Out Type)
Read more
SUB MATIC 2HP
Product: Water Level Regulator Relay
Power Supply: 24-240-380 V c.a. Multi Feeder
Output relay 1: 20(8) 250 V a.c. 2Hp
Output relay 2: 10 (4) 250V a.c. 1Hp
Function 1: Dry Running Control For A Submersible Pump + Relay Output For a Remote Alarm
Function 2: Filling Control By A Pressure Switch or Float Switch + Dry Running Control + Relay Output For A Remote Alarm
Function 3: Booster Dry Running Control + Pump START/STOP By A Pressure Switch + Relay Output For A Remote Alarm
Function 4: Drainage Control By One Or Two Float Switches or Probes
Read more
