Description
When the tap is open, the water flow over 3
l/min, or 0,6 l/min depending on the model,
causes the FLOW PUMP internal valve
movement and the subsequence command
of the motor start-up or the switching off in
case the flow ceases for the closing of the tap
or for missing recover inside the accumulation
tank (dry running control).

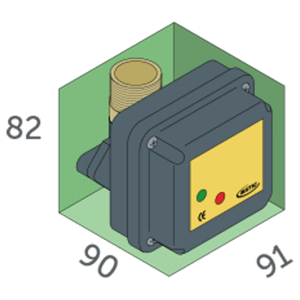

FLOW PUMP is provided of an input and an
output of 1” threaded male for the installation
in vertical in series to the liquid conduction
piping, with the possibility of 360° positioning
respect to the flow switch axis.
Thanks to the high load of the electric contact,
FLOW PUMP can control directly motors up
to 1Kw 10(4)A 250 V a.c.
