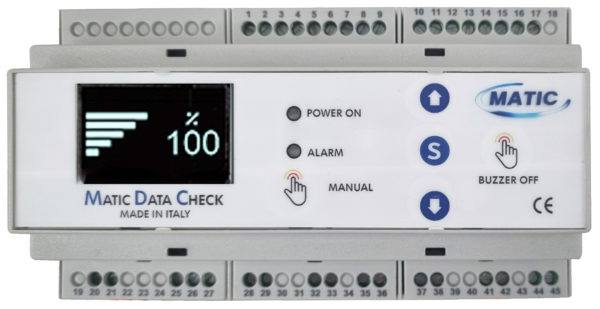

Matic Data Check

Level Control With Display

Multi Power Supplies:

12V d.c ; 115V a.c; 240V a.c.

Inputs :
– n° 1 Analogic (Pressure-Radar- Flow)
– n° 6 Digital (Probes , float Switches)

Display; CM ; % ; MT ; BAR ; PSI ;

Outputs :

– n°5 Set Points Relay
– n° 1 Too High Level or Reserv Alarm

Features

Multi Power Supplies:

12 V d.c. – 115V d.c. 240V d.c.

Display Oled 2.54″:

Display 0-9999 cm – mt – % – bar – bar – psi – l/min

Inputs:

n° 1 Analogic – n° 6 Digital

Outputs:

n° 5 Set points Outputs Relay can be delayed at closing or opening

n° 1 Too High or Reserv Outputs Relay

Dimensions: n° 6 Din rail Module

Description

Level Regulator With Display

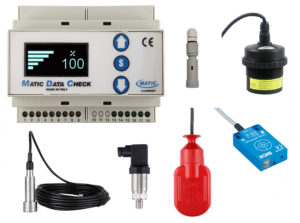

For any LIQUID, Granulates, Non-Flammable Inert Gas, suitable for working with:

simple Water Level Control ON/OFF Switches (Up to 6 devices) or Single Pole Probes for displaying up to 5 Set Points and 1 Too High level Alarm or reserve Alarm
Radar or Pressure or Flow Sensors 0-5V – 4-20 mA type
PNP or NPN sensors ( up to 6 sensors)

Oled Display with Graphic Rapresentation of 5 Set Points, Reading of the Liquid Level or Flow

Programmaed for Exchange Pump function, Second Pump Starting for the Pressure Maintenance on Booster Function or water Draining Pump 2
